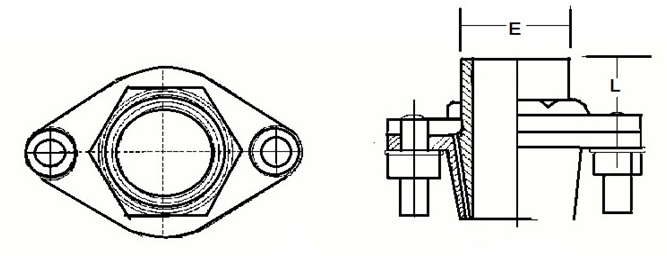

| SIZE SECURE | E (mm) | Max Dia Of cable | Under Armor dia | L Thread Length | Suitable For Min Dia | Suitable For Max.DIA |
|---|---|---|---|---|---|---|
| FLT 5 | 15.0 | 16.5 | 10.0 | 13.0 | 12.0 | 16.5 |
| FLT 4 | 19.0 | 19.0 | 13.5 | 13.0 | 15.0 | 19.0 |
| FLT 3 | 19.5 | 20.5 | 13.0 | 13.0 | 18.5 | 20.5 |
| FLT 2 | 25.0 | 24.5 | 19.0 | 15.0 | 20.5 | 24.5 |
| FLT 1 | 31.0 | 30.0 | 25.5 | 15.0 | 24.0 | 30.0 |
| FLT 11 | 31.0 | 34.0 | 28.0 | 15.0 | 29.5 | 34.0 |
| FLT 0 | 37.5 | 35.0 | 29.5 | 20.0 | 32.5 | 35.0 |
| FLT 00 | 37.5 | 38.0 | 29.5 | 20.0 | 34.5 | 38.0 |
| FLT 38 | 42.0 | 42.0 | 34.50 | 20.5 | 37.0 | 42.0 |
| FLT 001 | 49.0 | 44.0 | 41.0 | 20.5 | 40.5 | 44.0 |
| FLT 002 | 53.5 | 52.0 | 46.0 | 21.5 | 43.5 | 52.0 |
| FLT 003 | 60.0 | 58.0 | 52.0 | 23.0 | 51.0 | 58.0 |
| FLT 0033 | 65.0 | 67.0 | 56.0 | 22.5 | 56.5 | 67.0 |
| FLT 004 | 75.0 | 76.0 | 65.2 | 22.5 | 66.0 | 76.0 |
| FLT 005 | 99.0 | 83.0 | 88.0 | 22.5 | 75.0 | 83.0 |
