| Earth Tag | |||
|---|---|---|---|
| Size | M16 to M100 and ½" NPT to 3½" NPT | Application | Earth Tags are used between cable gland entry and equipment to provide earth bound connection. Earth Tag produces earth bound connection for electricity. |
| Material | Brass BS2870 and SS316L | Optional | Earth Tags are also available in different plating like Nickel, Chrome, Tin. We are also able to supply Earth Tag with or without screw and washer. |
| Standard | BS 6121:Part 5:1993 | ||

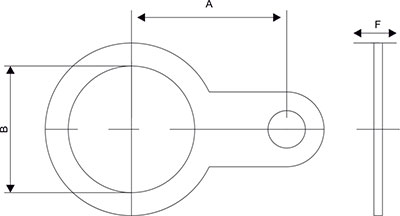

| METRIC SIZE | NPT SIZE | "A" | "B" | (NPT) "B" | F |
|---|---|---|---|---|---|
| M20 | 1/2" NPT | 27 | 21 | 22 | 1.5 |
| M25 | 3/4" NPT | 33 | 27 | 27 | 1.5 |
| M32 | 1" NPT | 36 | 34 | 34 | 1.5 |
| M40 | 1.1/4" NPT | 44 | 41 | 43 | 1.5 |
| M50 | 1.1/2" NPT | 50 | 51 | 49 | 1.5 |
| M63 | 2" NPT | 65 | 64 | 61 | 1.5 |
| M75 | 2.1/2" NPT | 58 | 77 | 77 | 1.5 |
| M90 | 3" NPT | 71 | 91 | 89 | 1.5 |
| M100 | 4" NPT | 81 | 101 | 115 | 1.5 |
