| CW 4P Cable Gland | |||
|---|---|---|---|
| Type | CW 4PT Single Compression Cable Gland | Cable Types | Armoured (Single Wire Armour (SWA) Aluminium Wire Armour (AWA)) |
| Application | Glands for use with all types of SWA cable. Used in applications where it is essential to provide an IP66 seal on the outer sheath | IP Rating | IP66 |
| Option Thread | Metric, NPT, BSP & PG | Gland Material | Brass (CuZn39Pb3), |
| Sealing Type | Weakback Sealing | Operation Temperature | (Nitrile): NBR -20°C to +80°C |
| Finish | Natural Brass or Nickle Plated or Electroless Nickle Plated | Accessories | PVC Shroud, LSFShroud, Lock Nut, Earth Tag, Serrated Washer |

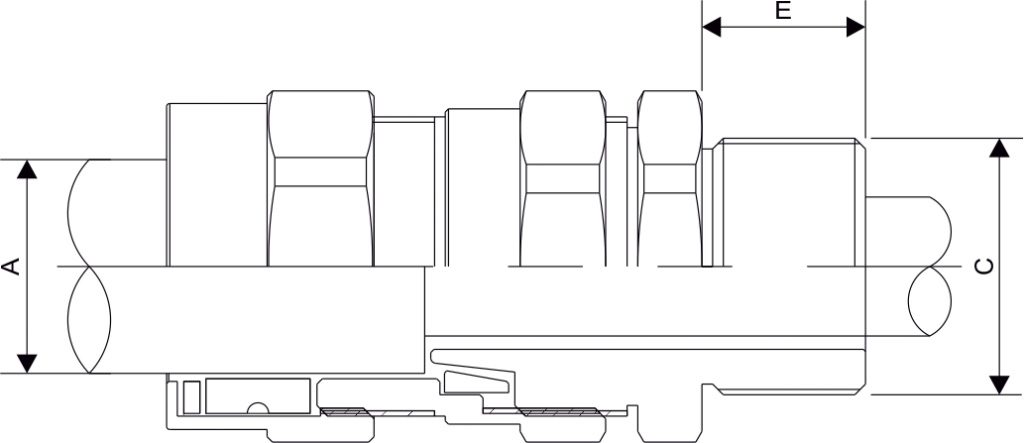

| CODE | GLAND SIZE | THREAD SIZE METRIC 'C' | THREAD SIZE NPT 'C' | THREAD LENGTH METRIC 'E' | CABLE RANGE 'A' | |
|---|---|---|---|---|---|---|
| MIN | MAX | |||||
| SECURE - CW4P - 20S | 20S | M20 | 1/2" | 10 | 11.5 | 15.5 |
| SECURE - CW4P - 20L | 20L | M20 | 1/2" | 10 | 14 | 20.5 |
| SECURE - CW4P - 25S | 25S | M25 | 3/4" | 10 | 18 | 24 |
| SECURE - CW4P - 25L | 25L | M25 | 3/4" | 10 | 20 | 27.2 |
| SECURE - CW4P - 32 | 32 | M32 | 1" | 10 | 26.3 | 33.5 |
| SECURE - CW4P - 40 | 40 | M40 | 1.1/4" | 15 | 32 | 40 |
| SECURE - CW4P - 50S | 50S | M50 | 1.1/2" | 15 | 38.2 | 46.3 |
| SECURE - CW4P - 50L | 50L | M50 | 1.1/2" | 15 | 44 | 52.6 |
| SECURE - CW4P - 63S | 63S | M63 | 2" | 15 | 50.1 | 59 |
| SECURE - CW4P - 63L | 63L | M63 | 2" | 15 | 56 | 65.3 |
| SECURE - CW4P - 75S | 75S | M75 | 21.2" | 15 | 62 | 71.6 |
| SECURE - CW4P - 75L | 75L | M75 | 21.2" | 15 | 68 | 78 |
| SECURE - CW4P - 90 | 90 | M90 | 3" | 20 | 80.5 | 91 |
All the dimensions given are in Millimeters (mm).
Can be also provided in Kit Packing as per requirement.
Disclaimer: Product sizes mentioned in the tables are for reference purpose only. The actual dimensional details would be available only after request based on the actual requirement.
