| CW 3P Cable Gland | |||
|---|---|---|---|
| Type | CW 3PT Single Compression Cable Gland | Cable Types | Single Wire Armour (SWA) Aluminium Wire Armour (AWA) |
| Application | CW glands are suitable for indoor and outdoor use with all typesof steel wire armoured cables outer seal grips sheath to achieve weatherproof seal. | IP Rating | IP54 |
| Option Thread | Metric & NPT | Gland Material | Brass (CuZn39Pb3) |
| Rubber Seals | Nitrile (NBR) | Operation Temperature | (Nitrile): -20°C to +80°C |
| Finish | Natural Brass or Nickle Plated or Electroless Nickle Plated | Accessories | PVC/LSF Shroud, Lock nut, Earth tag, Serrated Washer, Adaptor/ Reducer. |

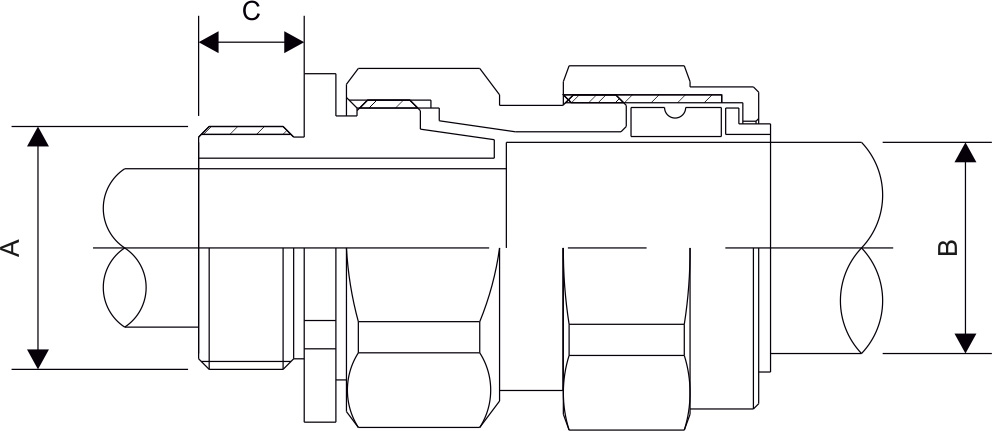

| CODE | GLAND SIZE | THREAD SIZE NPT'A' | THREAD SIZE METRIC'A' | THREAD LENGTH 'C' | CABLE RANGE 'B' | |
|---|---|---|---|---|---|---|
| MIN | MAX | |||||
| SECURE - CW3P -20S | 20S | 1/2" | M20 | 10 | 11.5 | 15.5 |
| SECURE - CW3P -20L | 20L | 1/2" | M20 | 10 | 14 | 20.5 |
| SECURE - CW3P -25S | 25S | 3/4" | M25 | 10 | 18 | 24 |
| SECURE - CW3P -25L | 25L | 3/4" | M25 | 10 | 20 | 27.2 |
| SECURE - CW3P -32S | 32S | 1" | M32 | 15 | 26.3 | 33.5 |
| SECURE - CW3P -32L | 32L | 1" | M32 | 15 | 26.3 | 33.5 |
| SECURE - CW3P -405 | 40S | 1.1/4" | M40 | 15 | 31.5 | 39.5 |
| SECURE - CW3P -40L | 40L | 1.1/4" | M40 | 15 | 32 | 40 |
| SECURE - CW3P -50S | 50S | 1.1/2" | M50 | 15 | 38.2 | 46.3 |
| SECURE - CW3P -50L | 50L | 1.1/2" | M50 | 15 | 44 | 52.6 |
| SECURE - CW3P -63S | 63S | 2" | M63 | 15 | 50.1 | 59 |
| SECURE - CW3P -63L | 63L | 2" | M63 | 15 | 56 | 65.3 |
| SECURE - CW3P -75S | 75S | 21.2" | M75 | 15 | 62 | 71.6 |
| SECURE - CW3P -75L | 75L | 21.2" | M75 | 15 | 68 | 78 |
| SECURE - CW3P -90S | 90S | 3" | M90 | 20 | 80.5 | 91 |
| SECURE - CW3P -90L | 90L | 3" | M90 | 20 | 80.5 | 91 |
All the dimensions given are in Millimeters (mm).
Can be also provided in Kit Packing as per requirement.
Disclaimer: Product sizes mentioned in the tables are for reference purpose only. The actual dimensional details would be available only after request based on the actual requirement.
