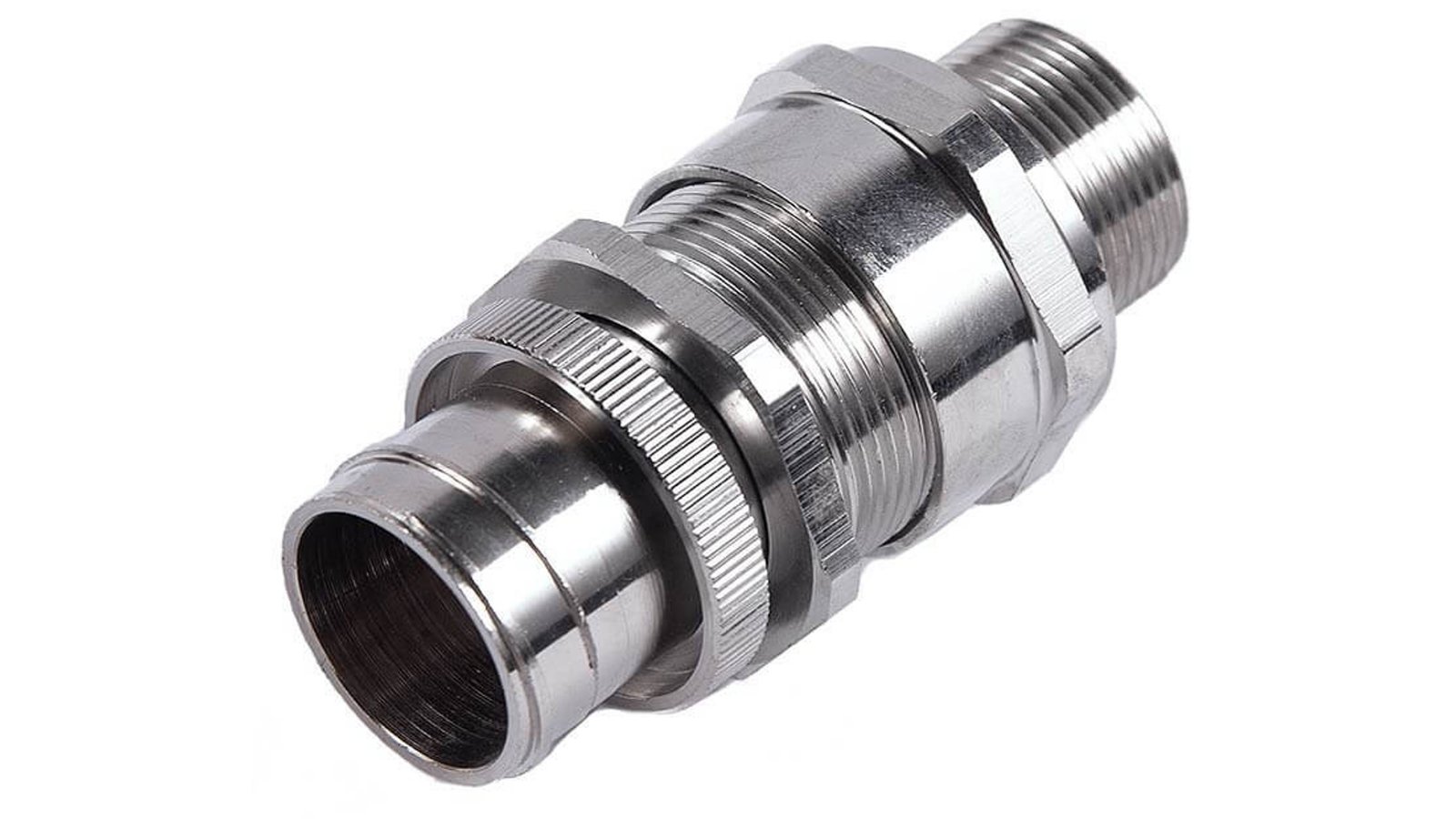

| A2FC Cable Gland | |||
|---|---|---|---|
| Type | A2FC Single Compression Gland | Cable Type | Unarmoured |
| Application | A2FC cable glands for non-armoured cables in Rigid and Flexible Conduits & Metal Hoses. Suitable for conduit with rubber sheath/ coating. Conduit thread on the outlet gives the possibility to connect flexible hoses, conduits and corrugated metal hoses. It is easy to use and has free rotating Female Bush for Connection. | Gland Material | BRASS (CuZn39Pb3), Stainless Steel (304 or 316L) |
| Option Thread | Metric, NPT, BSP | IP Rating | IP66 |
| Seal Type | Displacement Type | Operation Temperature | Standard Seals (Nitrile): -20°Cto 80°C.on request (Silicone): -60°C to +l80°C |
| Finish | Natural Brass or Nickle Plated Or Electroless Nickle Plated | Accessories | PVC/ LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor/ Reducer. |

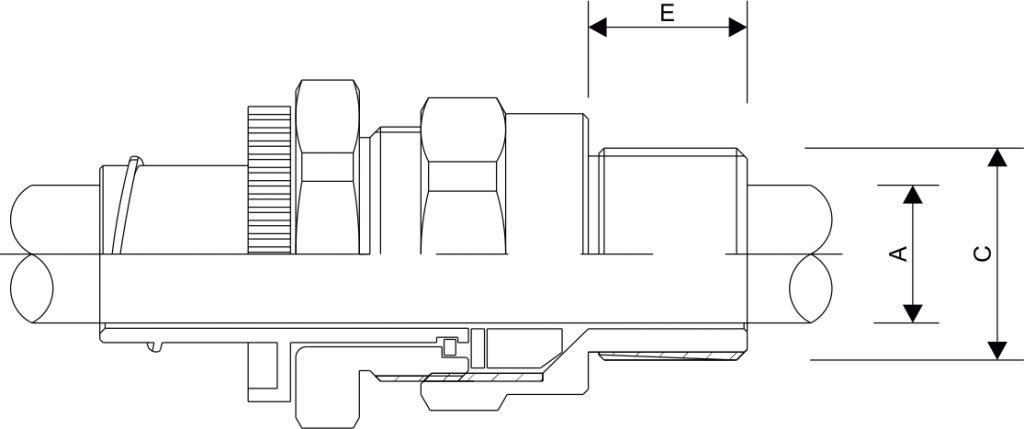

| CODE | CABLE GLAND SIZE | METRIC | THREAD LENGTH (METRIC) 'E' | NPT | THREAD LENGTH (NPT) 'E' | DIAMETER 'A' | A/F | A/C | MINOR DIAMETER OF CONDUIT | MAJOR DIAMETER OF CONDUIT | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | MAX | ||||||||||
| SECURE - A2FC - 20S16 | 20S16 | M20 | 15 | 3/8" | 20 | 3.2 | 8.7 | 24.5 | 27 | 9.5 | 15 |
| SECURE - A2FC - 20S16 | 20S16 | M20 | 15 | 3/8" | 20 | 3.2 | 8.7 | 24.5 | 27 | 11.7 | 17.4 |
| SECURE - A2FC - 20S | 20S | M20 | 15 | 1/2" | 20 | 6.2 | 11.7 | 24.5 | 27 | 13 | 20 |
| SECURE - A2FC - 20S | 20S | M20 | 15 | 1/2" | 20 | 6.2 | 11.7 | 24.5 | 27 | 13.9 | 20 |
| SECURE - A2FC - 20S | 20S | M20 | 15 | 1/2" | 20 | 6.2 | 11.7 | 24.5 | 27 | 14.7 | 21.5 |
| SECURE - A2FC - 20 | 20 | M20 | 15 | 1/2" | 20 | 8 | 14 | 27 | 30 | 15.6 | 21.6 |
| SECURE - A2FC - 20 | 20 | M20 | 15 | 1/2" | 20 | 8 | 14 | 27 | 30 | 16.9 | 23.4 |
| SECURE - A2FC - 20 | 20 | M20 | 15 | 1/2" | 20 | 8 | 14 | 27 | 30 | 18 | 24 |
| SECURE - A2FC - 20 | 20 | M20 | 15 | 1/2" | 20 | 8 | 14 | 27 | 30 | 20 | 26.3 |
| SECURE - A2FC - 25 | 25 | M25 | 15 | 3/4" | 21 | 11.2 | 20 | 36 | 40 | 22.3 | 28.5 |
| SECURE - A2FC - 25 | 25 | M25 | 15 | 3/4" | 21 | 11.2 | 20 | 36 | 40 | 25.1 | 31 |
| SECURE - A2FC - 32 | 32 | M32 | 15 | 1" | 26 | 17.1 | 26.3 | 41 | 45 | 28.1 | 35.8 |
| SECURE - A2FC - 32 | 32 | M32 | 15 | 1" | 26 | 17.1 | 26.3 | 41 | 45 | 30.4 | 38 |
| SECURE - A2FC - 40 | 40 | M40 | 15 | 1 1/4" | 26 | 23.5 | 32.2 | 50 | 55 | 36.4 | 45 |
All the dimensions given are in Millimeters (mm).
Can be also provided in Kit Packing as per requirement.
Disclaimer: Product sizes mentioned in the tables are for reference purpose only. The actual dimensional details would be available only after request based on the actual requirement.
